Fortius420 - EXPhyperbaric chamber

Hyperbarics Made Easy- Split Chamber

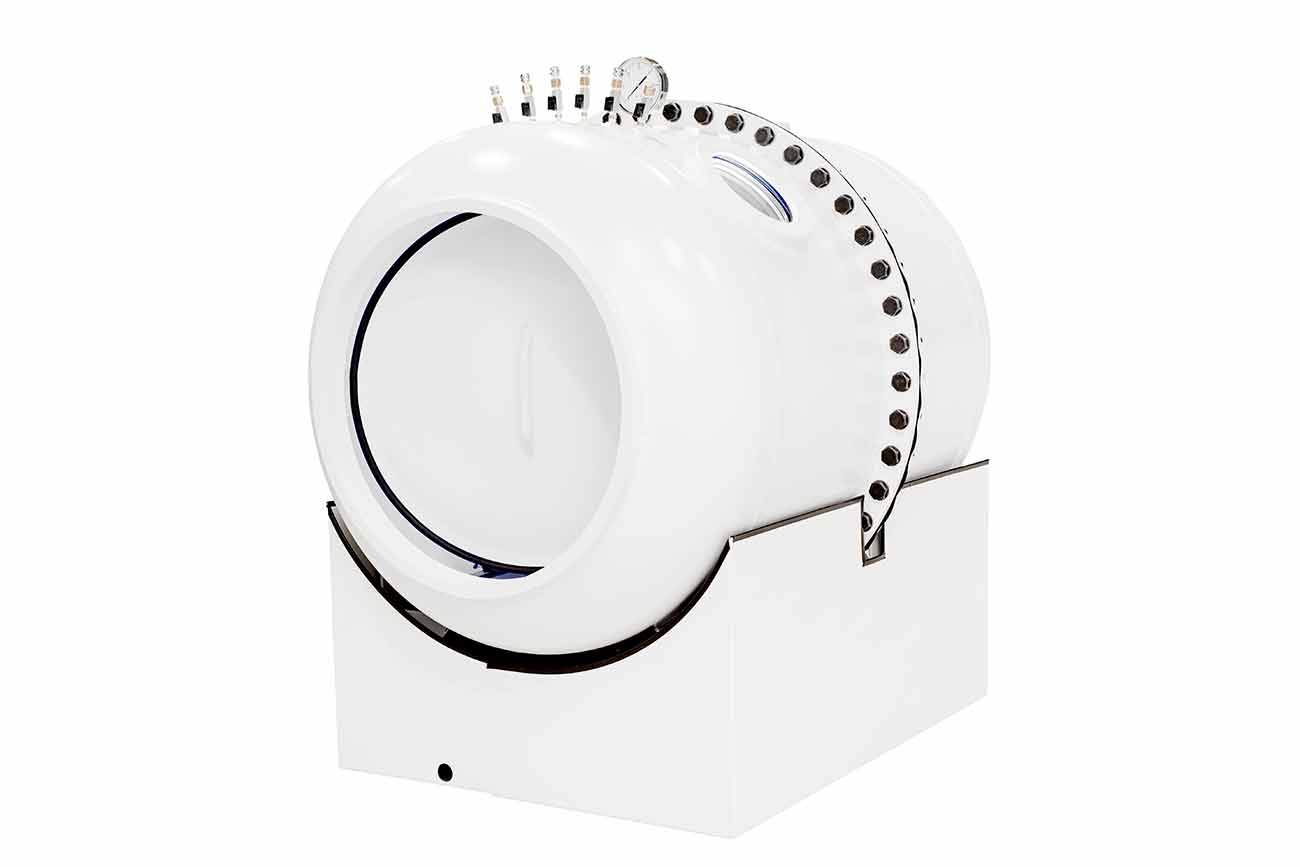

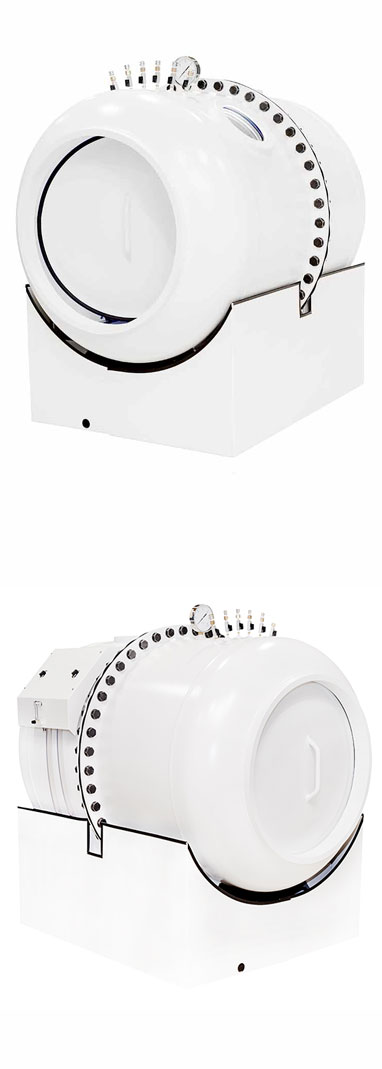

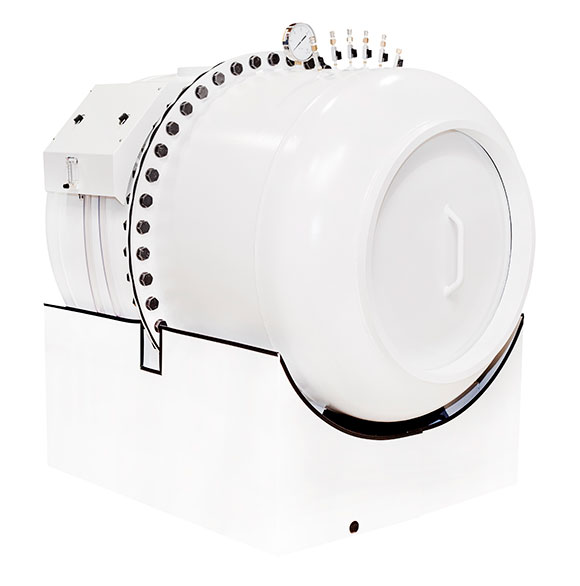

Fortius 420 hyperbaric chamber

Our second largest and most versatile hyperbaric chamber Fortius420 - EXP is a market favorite. It comes with the capability of treating patients in up to 3.0 ATA (29 psi) operating pressure. This chamber boasts a considerable 42" diametric interior and is 62 inches in length. However, despite its large size, the Fortius420 - EXP has been designed to fit in most offices and clinics. The hybrid alloy hyperbaric chamber comes fitted with mirrored controls on the interior and exterior. To make the treatment safe for the patient and cost-effective for the physicians, this particular chamber can release 100% oxygen at up to 3.0 ATA through a hood assembly system. OxyHealth prioritizes fast delivery and can ship and install the chamber within 10 business days. The Fortius420 - EXP has been designed keeping in mind the safety protocols and high industry standards to ensure that the chamber stays functional for years to come.

Fortius 420

Hyperbarics Made Easy- Split Chamber

Manufacture: Hyperbaric for Life

Specifications

Oxyhealth Product Specification

FLANGE

  • Thickness : .75 in
  • Grade: 70
  • Type : 516-70 Hybrid Alloy
  • Tensil Strength : 70,000 lbs (31.751 kg)
  • Hard Shell Chamber: approx. 1100 lbs when assembled.

Dimensions

Length: When bolted together it is 64 in in length (2 – 32in sections) with additional 32 inch

center sections available upon order

Shell Diameter: 42 inch

Door Diameter: 28 inch

OxyHealth chambers are manufactured in the USA
in accordance to regulations and codes of the following

Fortius Logos
Clean Air Compressor

Clean Air Compressor

Double-headed, oil-less, 1/3 hp compressor with dual intake filters with cooling radiator

High-efficiency inline air filtration that filters air to 0.01 microns

Analog pressure gauge

OxyHealth compressors are manufactured in the USA
in accordance to regulations and codes of the following

Compressor

What do you get?

Fortius420 - EXP Hyperbaric Chamber

Mattress (1)

Oxygen Hoods

Clean Air Compressor

(2) 15ft Medical Grade Hoses

You get a total of 1 Crate (4’W x 5’H x 8’D)

* Solace210®, Respiro270®, Vitaeris320®, Quamvis320® and Fortius420® are federally registered and trademarked names of Oxy-Health, LLC and are fully protected under federal law.
