Quamvis320®hyperbaric chamber

Simple for patients to handle

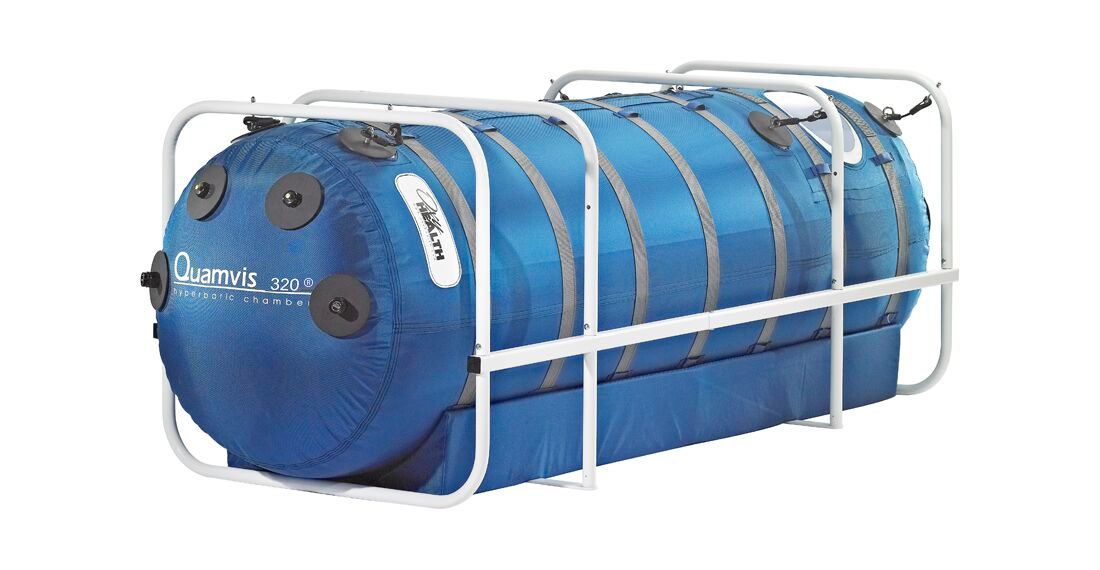

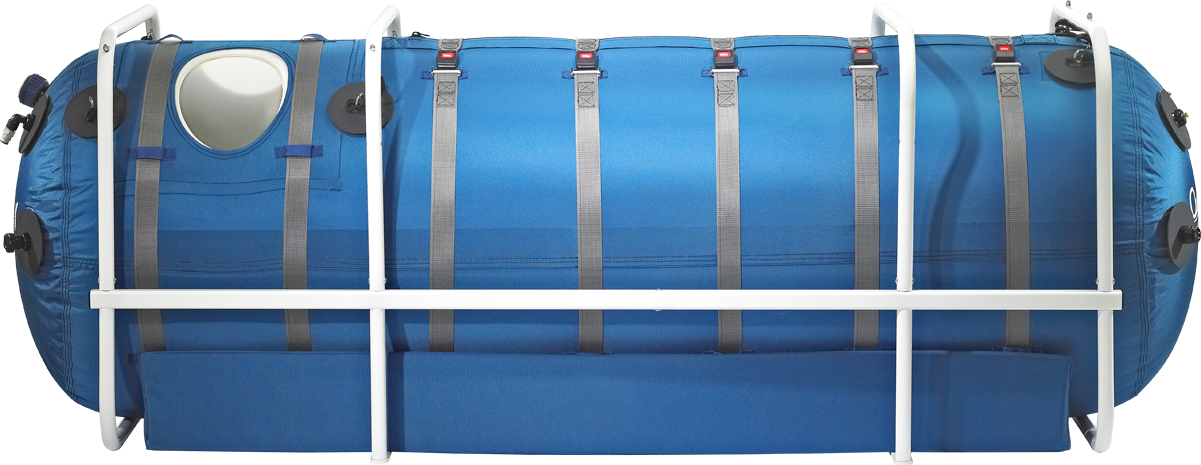

Quamvis 320 - Portable Hyperbaric Chamber

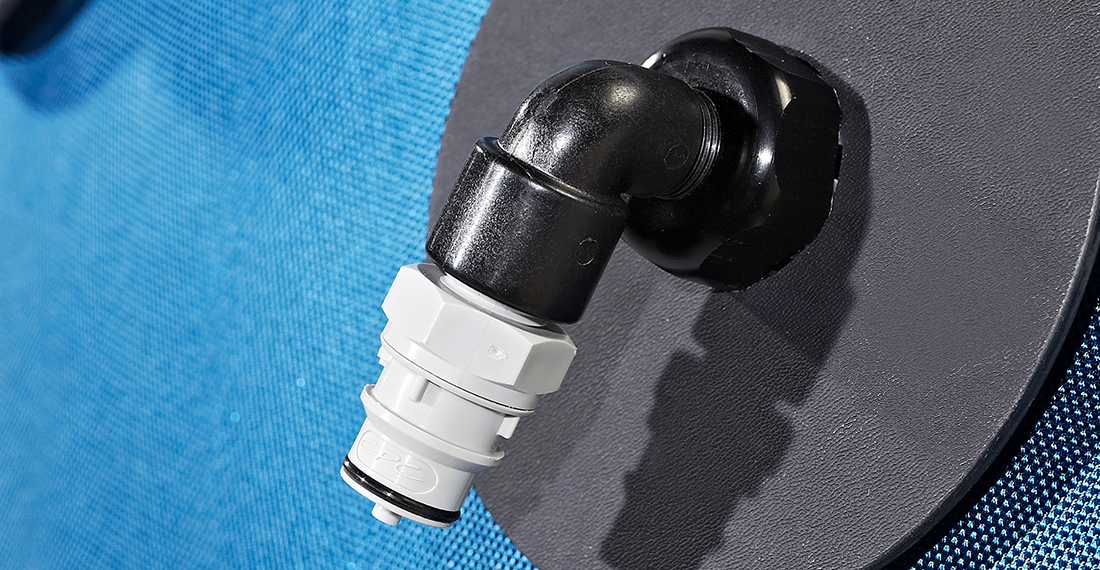

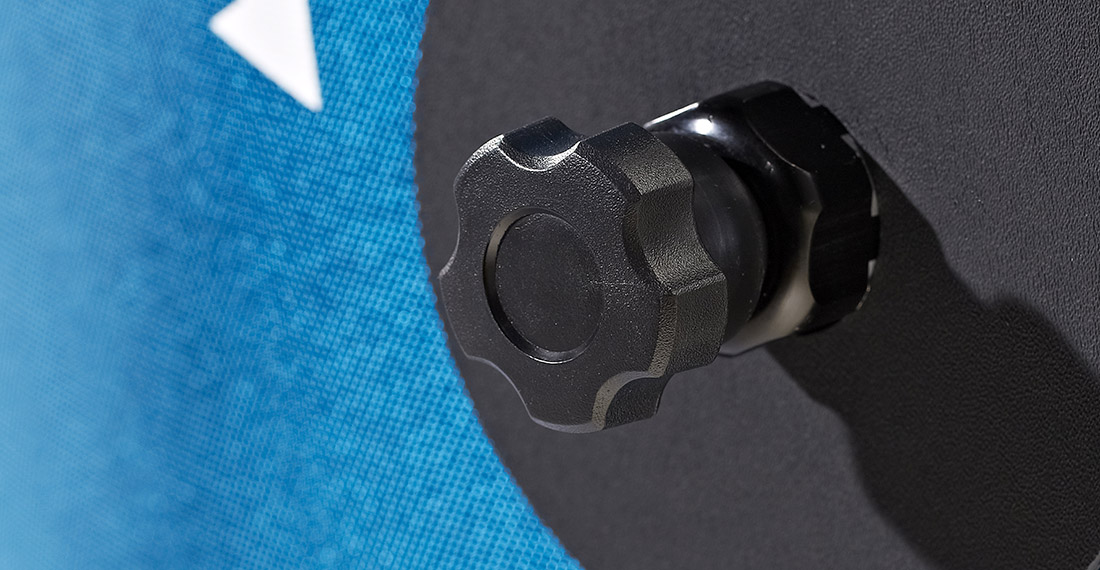

Our newest and most innovative design, the Quamvis320® is the most secure, portable soft-walled chamber on the market. A spacious 32" diametric interior and exterior frame concept provides a large, non-obstructive interior and unique support system for patients to enter/exit the chamber with ease. This chamber can fit two adults and is fully equipped with dual pressure control valves for physician and self-treatment capabilities. Strategically angled air-in port and tamper-proof redundant pressure regulators maintains consistent circulatory air flow within the chamber. Extreme performance reinforced ballistic nylon jacket and external “SafeSet” buckling system make this chamber exceed our superlative safety specifications, while remaining practical for clinical and personal use. This cutting-edge design with all medical grade components ensures safe and long lasting functionality for years.

Quamvis 320 - Hyperbaric Chamber

Hyperbaric Chamber

1.3 ATA (4 psi) operating pressure

Durable, double-sided 44 oz. urethane coated polyester bladder

Pressure tested beyond 30 psi to exceed PVHO-1 safety requirements

Extreme performance reinforcing ballistic nylon jacket

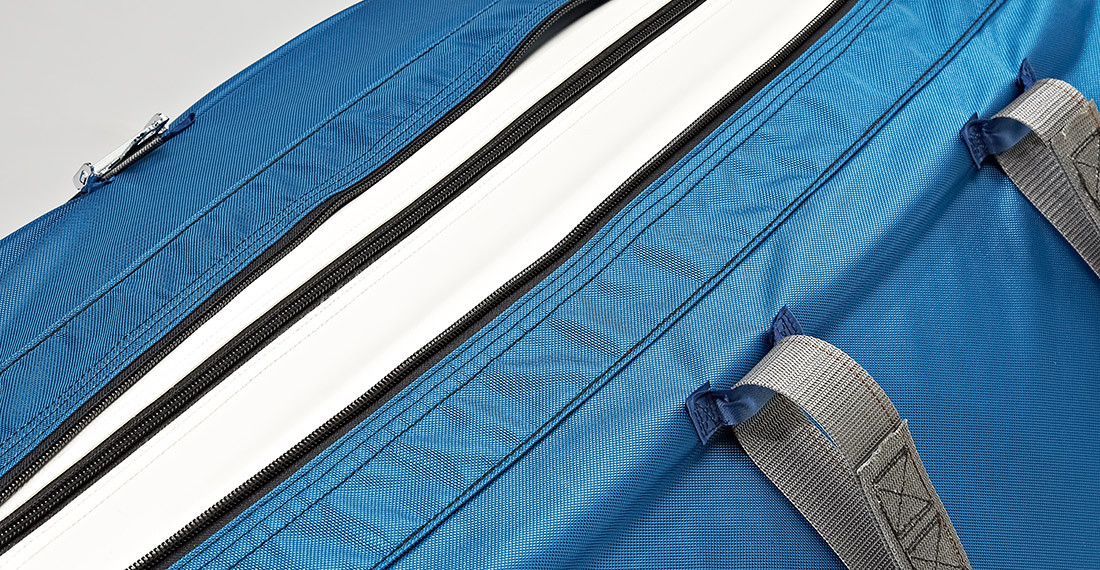

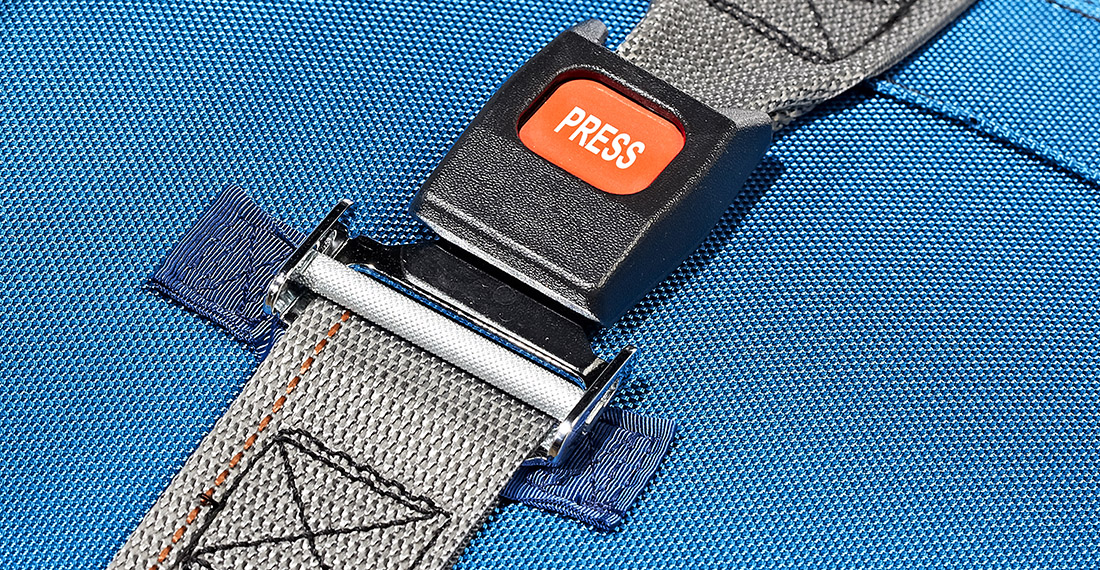

“SafeSet” buckling system for additional secure enclosure support 3-zipper seal assembly

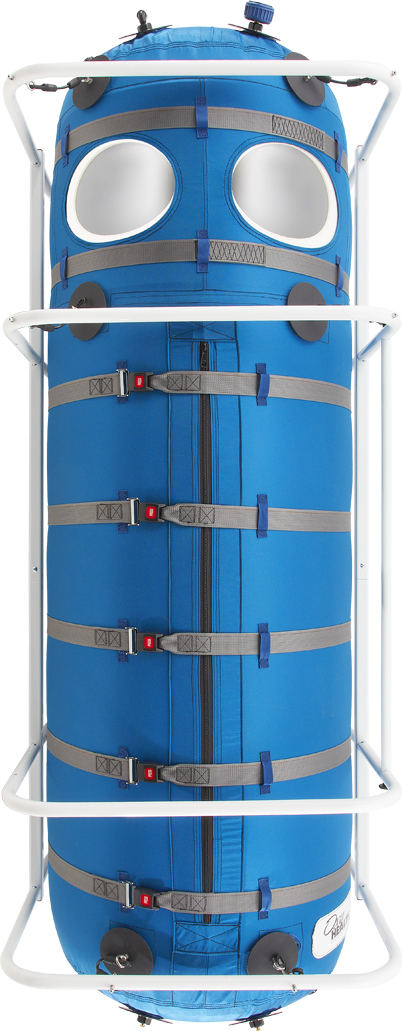

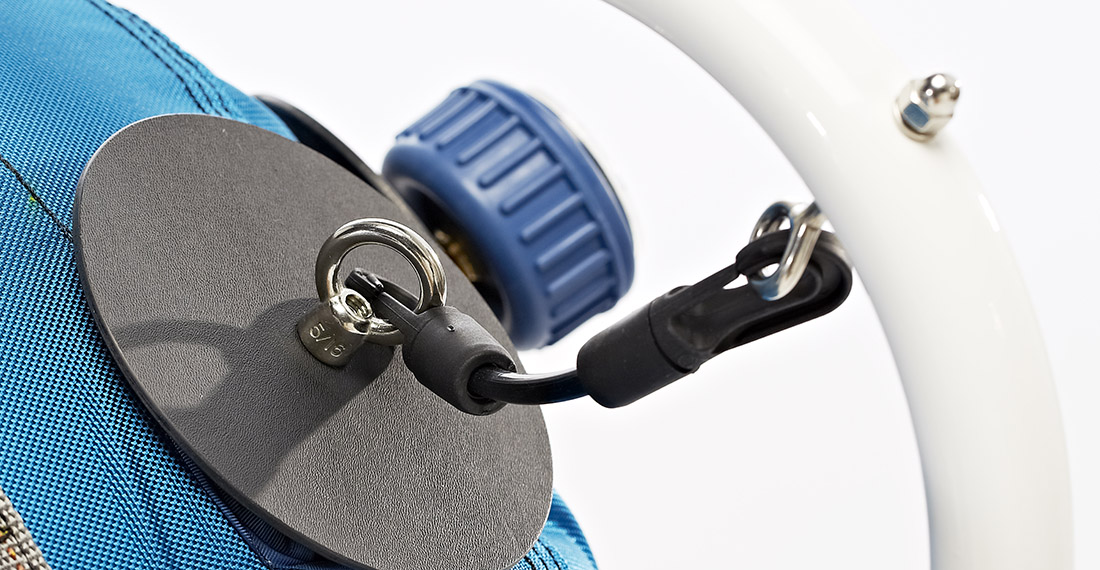

Rigid external steel frame for patient stabilization and added comfort

Tamper-proof redundant pressure regulators

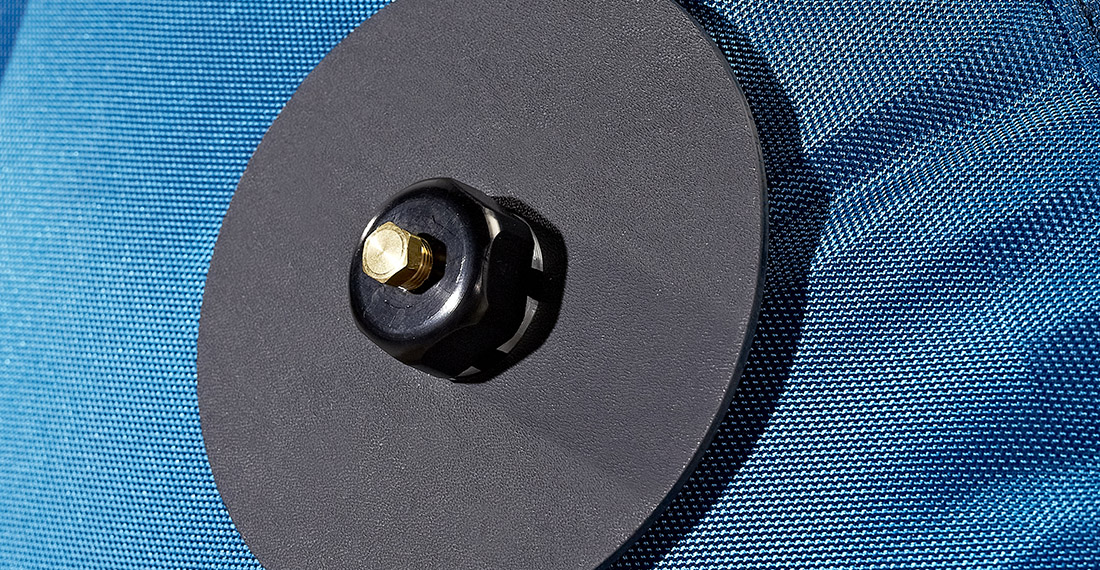

3 additional ports for external medical pass-through devices

Mattress contoured to fit inside the chamber

Manufactured with nontoxic, medical grade components

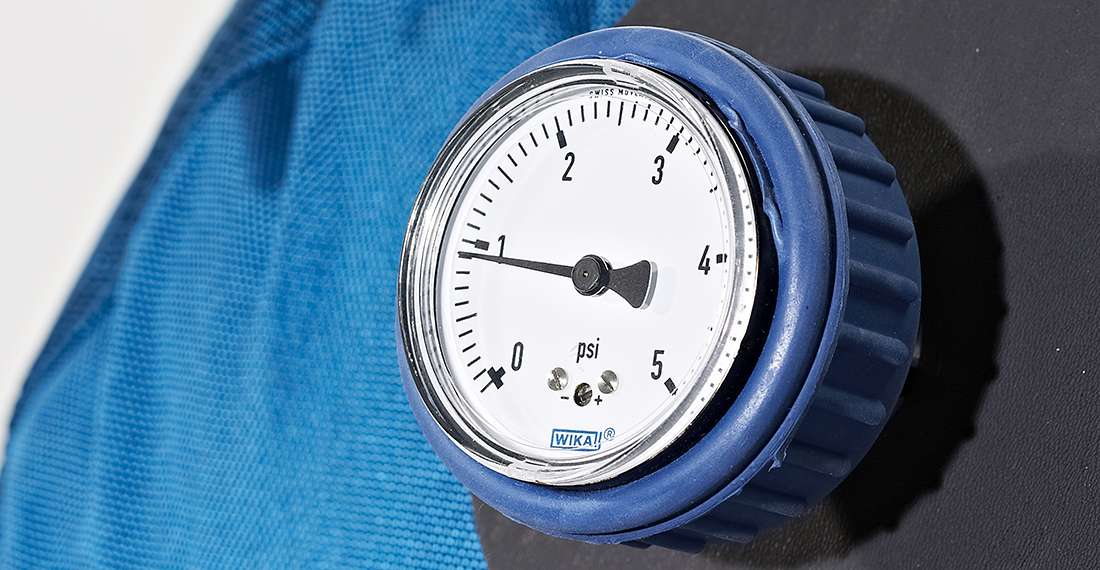

Analog pressure gauge


  • Bladder: 38 lbs (17.23 kgs)
  • Frame: 34 lbs (15.42 kgs)
  • Mattress: 13 lbs (5.89 kgs)
  • Bolsters: 7 lbs (3.17 kgs)
  • Compressor: 37 lbs (16.78 kgs)


Length: 100 in (254 cm)

Diameter (inflated): 32 in (81.28 cm)

OxyHealth chambers are manufactured in the USA
in accordance to regulations and codes of the following

Quamvis Logos
Clean Air Compressor

Clean Air Compressor

Double-headed, oil-less, 1/3 hp compressor with dual intake filters with cooling radiator

High-efficiency inline air filtration that filters air to 0.01 microns

OxyHealth compressors are manufactured in the USA
in accordance to regulations and codes of the following


What do you get?

Quamvis320® Hyperbaric Chamber

External Frame



Clean Air Compressor

10ft Medical Grade Hose

Operation Manual

* Solace210®, Respiro270®, Vitaeris320®, Quamvis320® and Fortius420® are federally registered and trademarked names of Oxy-Health, LLC and are fully protected under federal law.
