Respiro270

Maximize with our mid-size.

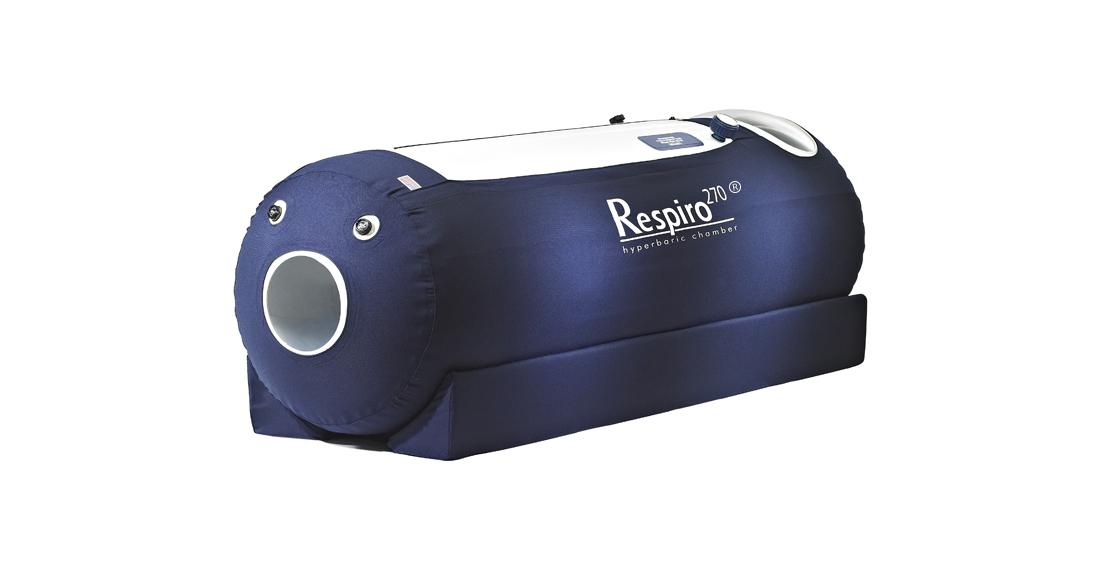

Respiro 270 – Mid-sized Hyperbaric Chamber

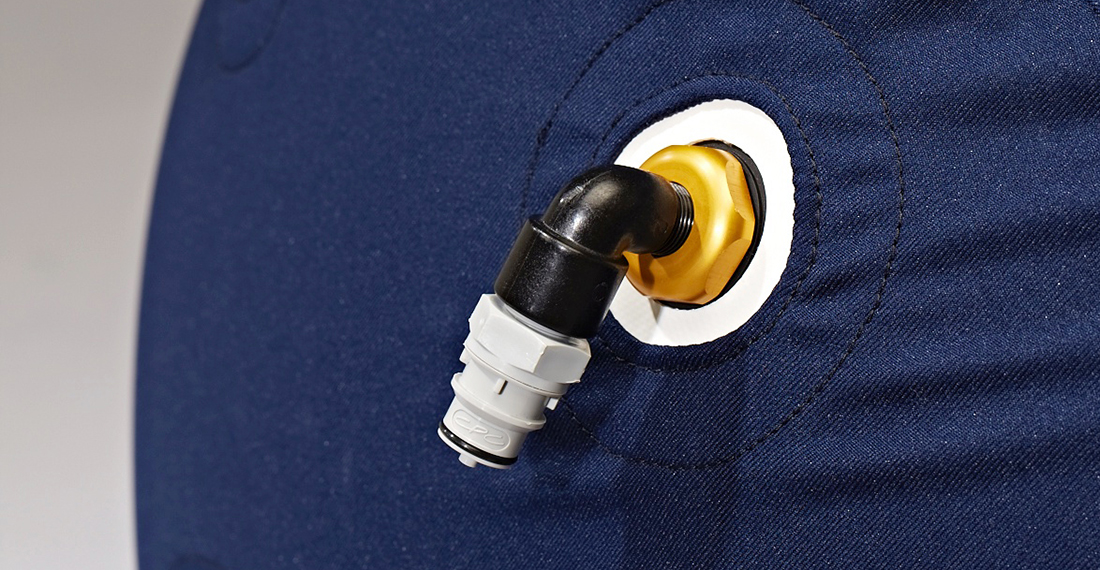

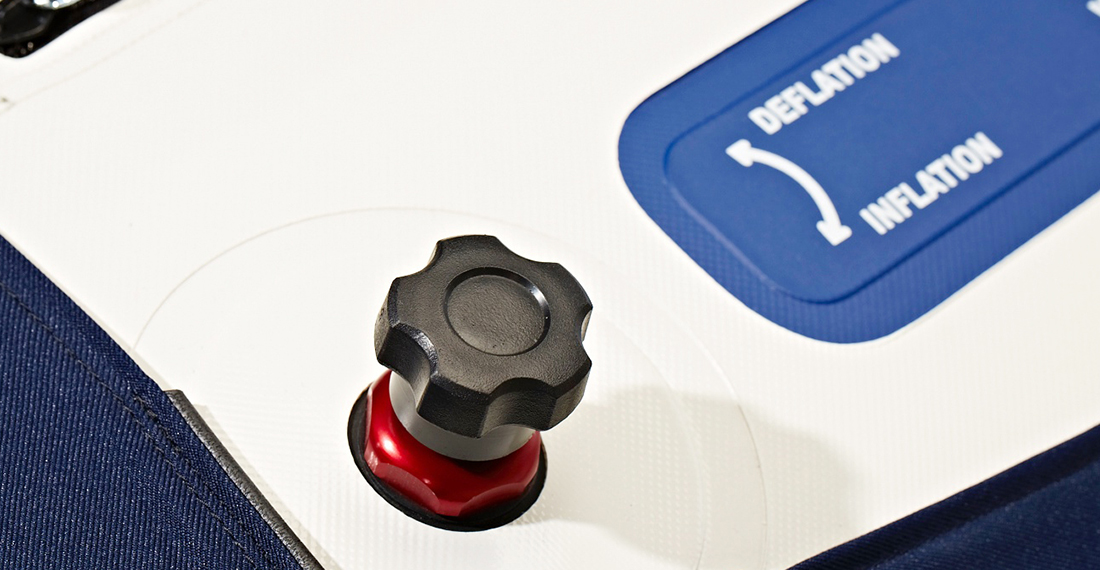

Combining functionality and comfort with a 27” diametric design to provide patients with increased freedom of movement, yet small enough to fit into any room. Dual control valve technology for physician / self-treatment, in addition to double-sided 44 oz. urethane coated polyester offers an ergonomic design and more importantly impeccable safety specifications. Three large patient viewing windows illuminate the interior with room light. Strategically angled air-in port and tamper-proof redundant pressure regulators maintains consistent circulatory air flow within the chamber during treatments. The practical design concept and medical grade components ensures durability and functionality that will last for years.

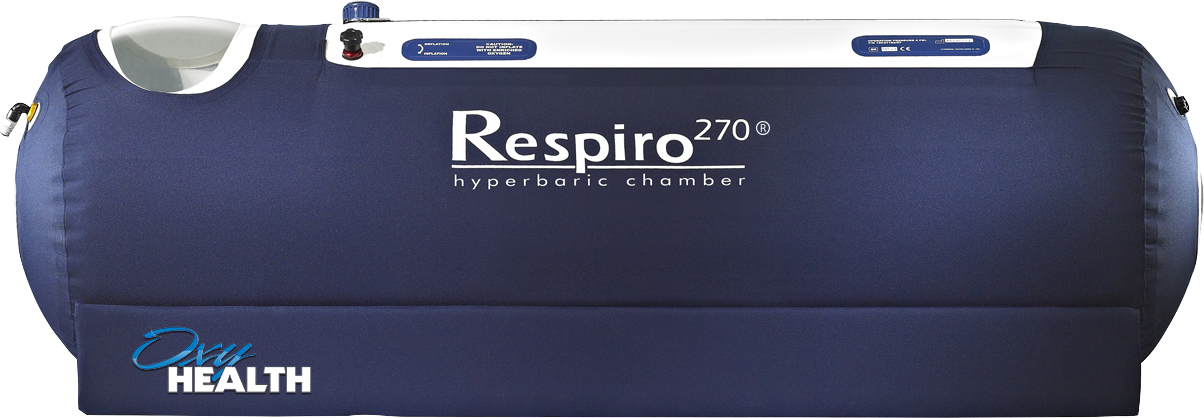

Respiro 270 side-view

Hyperbaric Chamber

1.3 ATA (4 psi) operating pressure

Durable, double-sided 44 oz. urethane coated polyester bladder

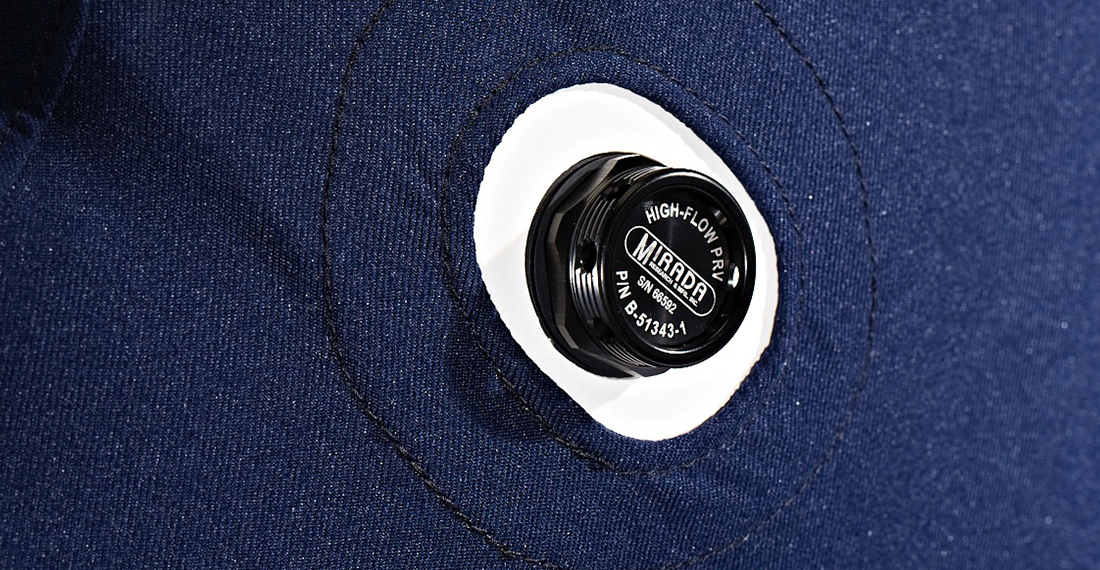

Tamper-proof, dual redundant pressure regulator valves

Patented 2-zipper seal assemblies

Designed for improved airflow through chamber during treatments

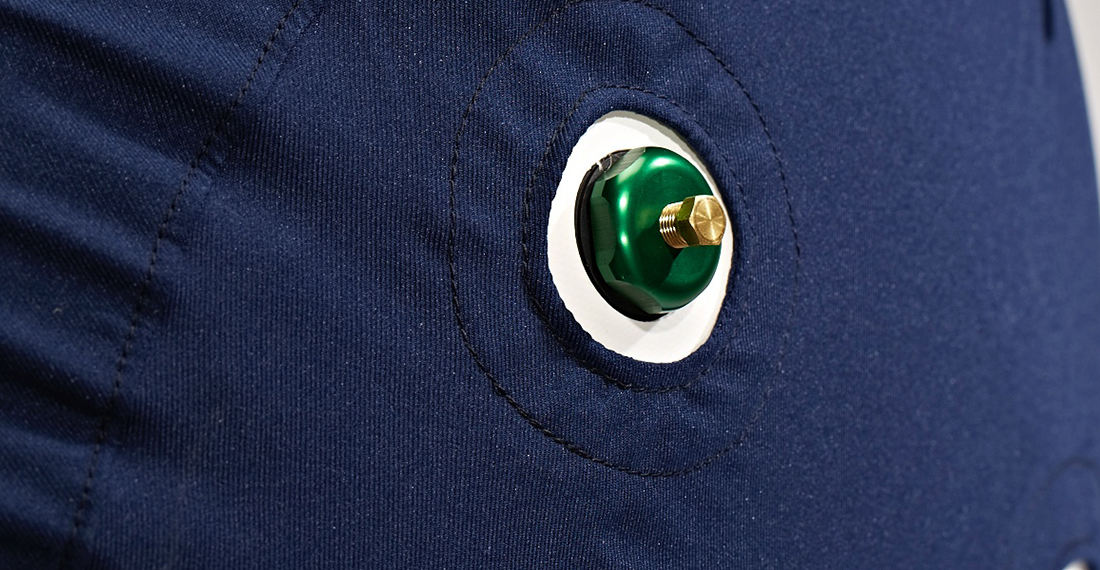

Additional port for external medical pass-through devices

Manufactured with nontoxic, medical grade components

*Optional – Rigid frame that maintains form when deflated

*Optional – Mattress contoured to fit inside the chamber

Weight

  • Bladder: 27 lbs (12.24 kgs)
  • Bolsters: 7 lbs (3.17 kgs)
  • Compressor: 24 lbs (10.88 kgs)
  • Frame: 16 lbs (7.25 kgs)
  • Mattress: 10 lbs (4.53 kgs)

Dimensions

Length: 90 in (228.6 cm)

Diameter (inflated): 27 in (68.58 cm)

OxyHealth chambers are manufactured in the USA
in accordance to regulations and codes of the following

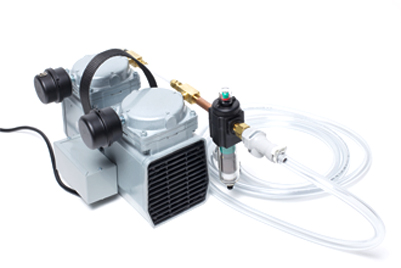

Clean Air Compressor

Clean Air Compressor

Double-headed, oil-less, 1/4 hp compressor with dual intake filters

High-efficiency inline air filtration that filters air to 0.01 microns

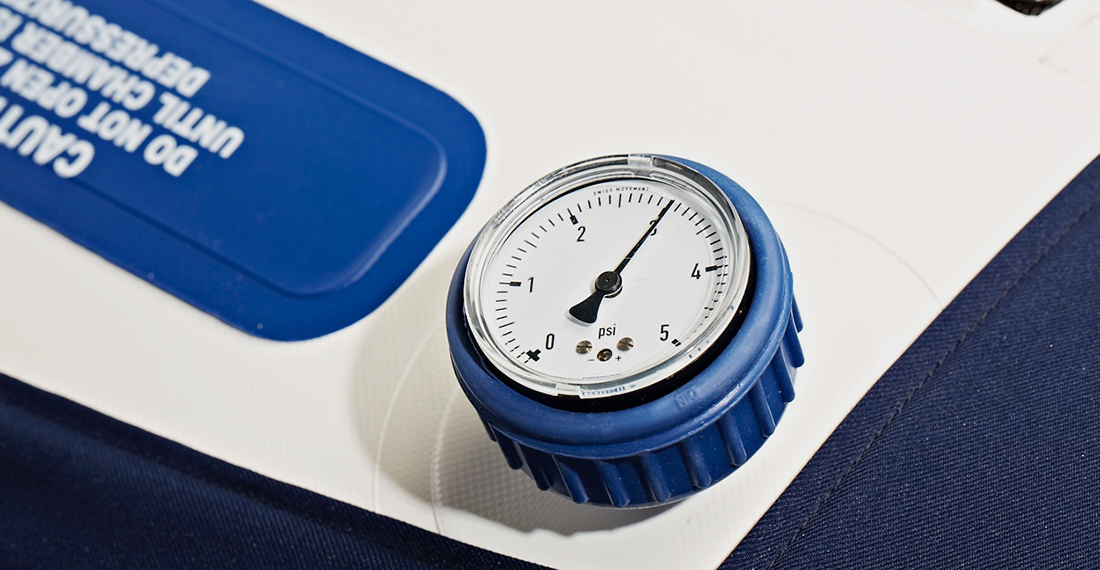

Analog pressure gauge

10 ft. medical grade hose with quick-disconnect couplings

OxyHealth compressors are manufactured in the USA
in accordance to regulations and codes of the following

What do you get?

Respiro270 Hyperbaric Chamber

Jacket

Carrying Bag

Bolsters

Clean Air Compressor

10ft Medical Grade Hose

Internal Frame (Optional)*

Mattress (Optional)*

Operation Manual

Installation DVD

You get a total of 5 shipping boxes
